• Throughput 10-15 unit/hr
• Radiation Source 9/6MeV
• Materials Discrimination (organic/inorganic)
• Penetration up to 430mm of steel
• Wire Detection 0.5mm wire in air
• Dual Energy X-RAY

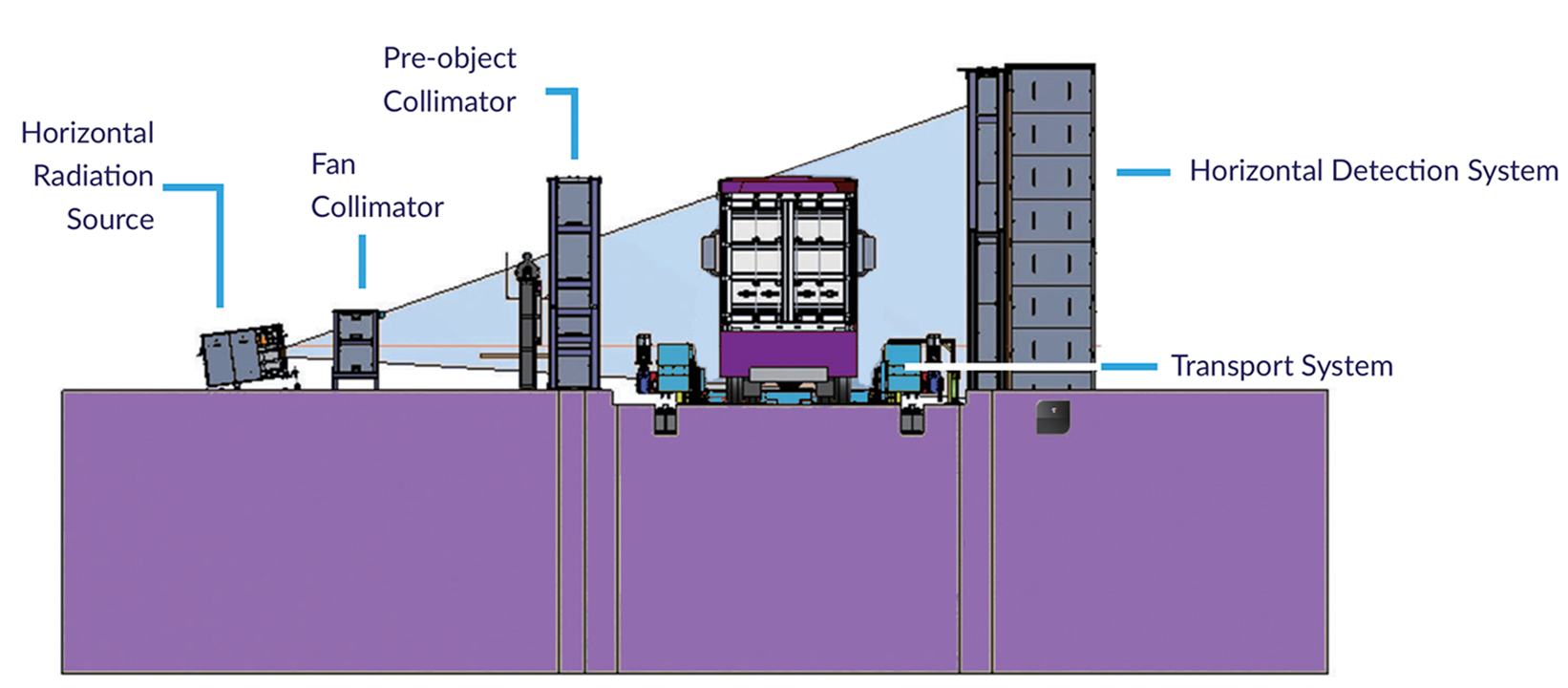

The UNISCAN SF-9 is a single-view immobile container inspection system, which uses X-ray sources and detector arrays in horizontal direction. A cargo moving system pulls containers at the speed of 400 mm/sec. Using dual-energy X-ray technology and efficient material discrimination algorithms, it is possible to distinguish organic materials from dense inorganic materials.
UNISCAN BROCHURE.pdf
| Radiation Source |
· 9MeV / 5MeV · Focal Spot size : < 1.5 mm · Beam Symmetry : ±5% within the range of ±7° from beam center · Radiation Leakage : < 0.002% |
|---|---|
| Detector |
· CdWO4 Photodiode type (Coupled Scintillator) · Pitch Size / Efficiency : 4.6mm / above 70% · Pixel : Horizontal_1376(43*32), Vertical_1056(33*32) · Alignment Accuracy : +/- 1mm · Dual Energy Processing time : < 3 seconds |
| Transport System |
· Overall Size : 5.0m(L) x 5.6m(W) x 1.2m(H) · Scan speed 400mm/sec ( variable ) · Throughput : 10 - 15 units/hour · Traction : 70T |
| Image |
· Real-time Image Manipulation · Histogram Equalization · Edge Enhancement · NUREG-700 Rev2 Human System |
| Server Network | · More than 1Gbps |
